P0456 – Evaporative Emissions System Small Leak Detected: Ultimate Gui

What Does Engine Code P0456 Mean?

The P0456 trouble code indicates a “small leak detected in the evaporative emission system (EVAP)”. As an EOBD/OBDII error, P0456—often called the evap code P0456—signals that your car’s computer (ECM or PCM) has noticed that fuel vapors are escaping somewhere in the closed EVAP system when they shouldn’t be.

This DTC P0456 is one of the most common “check engine light” causes and typically points to a minor vapor leak—often as simple as a loose or cracked gas cap. While it doesn’t usually affect how your car drives, ignoring it for too long can lead to increased emissions and potential inspection failures.

What Is the Evaporative Emissions System (EVAP)?

The EVAP system prevents harmful fuel vapors from escaping into the atmosphere. Any part of it that is damaged will trigger code P0456.

Main components include:

Fuel tank – stores fuel and generates vapors.
Gas cap – seals the tank from external air.
Charcoal canister – traps vapors temporarily.
Purge valve and vent valve – control vapor flow into the engine.
EVAP lines and hoses – carry vapors between parts.

Can I Safely Drive My Vehicle When the P0456 Code Is Triggered?

Yes, you can still drive safely in most cases when the P0456 code appears. Unlike the P0457, which points to a " big" leak, P0456 usually doesn’t affect the vehicle’s immediate drivability since it involves vapor containment, not the fuel or ignition systems.

However, You should not ignore it. Code P0456 is not immediately dangerous, but ignoring it may slightly increase emissions.

Recommendation: Address the issue within 1–2 weeks. Start with simple fixes (e.g., tightening or replacing the gas cap) before moving to professional diagnostics.

What Are the Common and Subtle Symptoms of the P0456 Code?

Category	Symptoms	Details & Notes
Common Symptoms	1. Check Engine Light Illumination	The most direct sign. May stay on continuously or turn off after several driving cycles (if the leak is temporary), but the code is usually stored in the ECU.
	2. Faint Fuel Odor	Possible around the vehicle, especially in enclosed spaces (e.g., garages) or after refueling. Often subtle due to the tiny leak size and may not always be noticeable.
	3. Slight Drop in Fuel Efficiency	A barely perceptible decrease in MPG (typically less than 1 MPG). Hard to detect without tracking fuel economy closely, as the leak only causes minor loss of recycled fuel vapors.
Subtle Symptoms	1. Gas Cap Issues (Most Common Cause)	- No clear "clicking" sound when tightening. - Rubber seal on the cap is cracked, 老化 (aged), or dirty. - Use of low-quality aftermarket gas caps. Accounts for over 70% of P0456 cases.
	2. Loose EVAP System Hoses	Small black vacuum/vent hoses (in the engine bay or near the fuel tank) may be slightly loose (not fully disconnected) due to vibration. Requires manual inspection to spot.
	3. Faulty Canister Vent Valve	Valve stuck in a slightly open position, creating a persistent tiny leak. Functionality often requires verification via diagnostic tools (e.g., active tests with an OBD2 scanner).
	4. Fuel Tank Pressure Sensor Drift	Sensor readings deviate slightly from actual pressure, causing the ECU to falsely detect a leak. Requires cross-verification with smoke leak detectors and diagnostic scanner data streams.
	5. Minor Damage to the Charcoal Canister	Tiny cracks in the canister housing or water intrusion (e.g., from overfilling fuel + wading) causing carbon clumping. Usually checked only after ruling out other potential causes.
	6. Intermittent Check Engine Light Behavior	Light turns on/off randomly (e.g., appears after refueling, fades after days). Caused by temperature/fuel level changes temporarily sealing or widening the leak (e.g., cold weather contracting hoses).
	7. Odd Refueling Noises or Issues	Faint hissing when removing the gas cap, or premature fuel pump shutoff (before the tank is full). Caused by disrupted pressure balance in the EVAP system.

In addition to these technical symptoms, some vehicle owners on forums like Reddit report intermittent check engine lights after refueling, a slight smell of gas when running the AC, or unusual engine behavior at idle. While these minor leaks typically do not affect drivability, they indicate a small EVAP system issue that may require inspection.

What Causes the P0456 Trouble Code?

Typical Causes of the P0456 Code?

Cause Category	Specific Components	Description & Why It Causes P0456
The Gas Cap	Loose, Damaged, or Contaminated Gas Cap	This is the #1 most common cause. A cap that is not tightened sufficiently, has a cracked or degraded rubber seal, or has a seal that is dirty (which can prevent a proper seal) cannot maintain the required vacuum. Cleaning the gas cap seal and the filler neck rim can resolve recurring P0456 codes for many users.
EVAP System Hoses	Loose, Cracked, or Brittle Hoses	The EVAP system uses numerous small-diameter rubber or plastic hoses. Over time, they can become brittle from engine heat, crack, or simply work loose from their connectors due to vibration, creating a tiny leak.
EVAP System Valves	Stuck Open Purge Valve / Solenoid Stuck Open Vent Valve / Solenoid	These valves control the flow of vapors between the charcoal canister, engine, and atmosphere. If a valve sticks slightly open when it should be sealed, it creates a direct, small leak. The vent valve (often located near the fuel tank) is a common offender.

What Uncommon but Important Causes Should I Watch for With P0456?

Cause Category	Specific Components	Description & Why It Causes P0456
Fuel Filler Assembly	Leaking Fuel Filler Neck/Tube or Seals	The fuel filler neck (the tube you put the gas nozzle into) can corrode (in steel ones) or develop cracks (in plastic ones). More subtly, the rubber seals or hoses that connect the filler neck to the fuel tank can harden, shrink, or degrade over time, creating a classic micro-leak path. As reported by many users, replacing the entire hose assembly and its seals is a proven fix for a persistent P0456.
Charcoal Canister Issues	Cracked or Saturated Canister	The charcoal canister itself can develop hairline cracks. More commonly, it can become "saturated" if the vehicle is frequently overfilled with fuel, allowing liquid gas to enter and damage the canister or clog its internal filters.
Physical Damage	Damaged or Rusty Fuel Tank	The fuel tank can be damaged by road debris or corrosion, creating a pinhole leak that is very difficult to spot.
Sensor & System Integrity	Faulty Fuel Tank Pressure (FTP) Sensor	This sensor measures pressure/vacuum in the system. A "lazy" or out-of-calibration sensor can send an incorrect signal to the PCM, tricking it into thinking there is a leak when the system is actually sealed.
Intermittent Electrical Issues	Wiring Harness Problems	Frayed wires, poor connections, or corrosion in the connectors for the EVAP valves or FTP sensor can cause intermittent signals, leading to a P0456 that comes and goes.

In addition to the above, real-world experiences from vehicle owners show how these minor EVAP leaks manifest and are resolved:
A 2017 Ford Escape owner reported that a disconnected plastic vacuum hose in the EVAP system caused a persistent P0456 code. Replacing the purge valve hose assembly fixed the issue. The user noted it was tricky to access all connections but ultimately resolved the code without dealership costs.
— forum: Diagnosing small evap leak P0456.

How Do I Read the P0456 Code From My Vehicle?

If your Check Engine Light just came on, the first thing to do is read the code using an OBD2 scanner.
Here’s what most DIYers do:

Locate the OBD2 port — it’s usually right under the steering wheel.
Plug in your Foxwell scanner and turn the key to the ON position (no need to start the engine).
Select “Read Codes” from the diagnostic menu.
If you see P0456, your car’s computer has detected a small EVAP system leak.

💡 Tip for Foxwell users: Many Foxwell tools like the NT301, NT710, or NT809 don’t just show you the code—they also provide freeze frame data (when the fault occurred) and EVAP monitor status, so you can understand whether it’s an intermittent or consistent leak.

What Methods Can Be Used to Detect Leaks in the EVAP System for P0456?

The EVAP system is sealed, so finding where vapors escape can be challenging. But here’s how you can narrow it down yourself before heading to a shop:

① Start with the Gas Cap

Ensure the cap is tightened properly — a loose cap is the most common cause of P0456.
Check the rubber seal; cracks or hardening can cause small vapor leaks.
After tightening or replacing, drive for a few days to see if the light clears.

② Do a Visual Inspection

Inspect the fuel filler neck, charcoal canister, and all EVAP hoses.
Look for cracked, disconnected, or split lines, especially near the engine bay or rear axle.

③ Use Live Data with Your Foxwell Scanner

Many Foxwell scanners can display EVAP pressure or purge flow readings.
If readings fluctuate abnormally, the purge or vent valve may be stuck or leaking.
This helps confirm system performance before you start replacing parts.

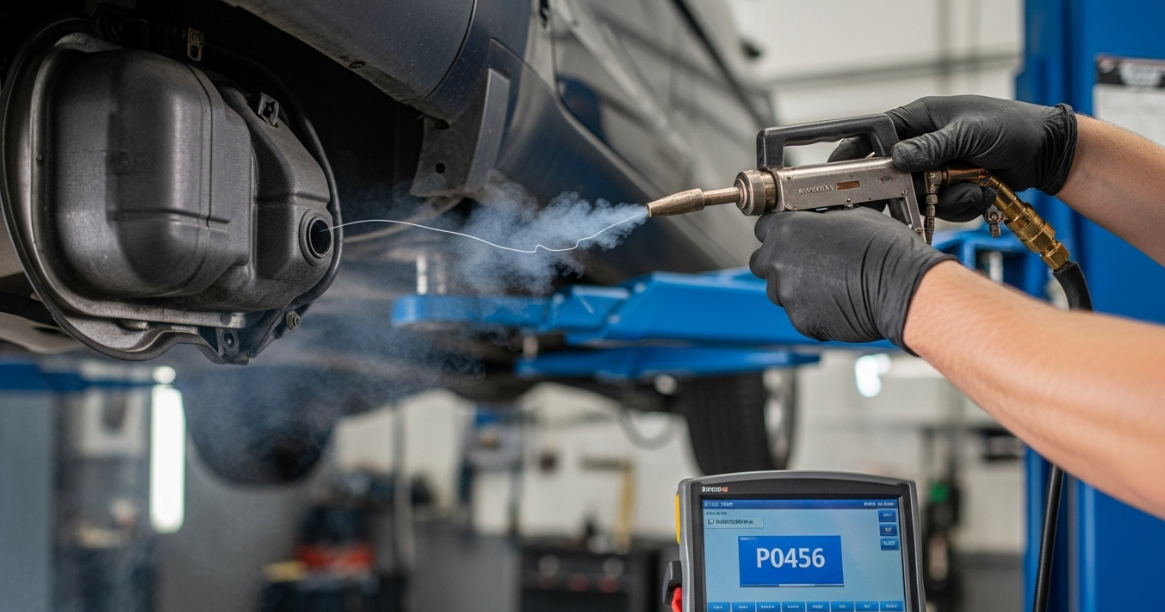

④ Try a Smoke Test (Most Accurate)

Professionals use a smoke leak detector—for example, the Foxwell S3000—to push harmless smoke into the EVAP system.
Where the smoke escapes, that’s your leak point — even a pinhole can trigger the P0456 code.
This method gives the most reliable results for stubborn, small leaks.

Should I DIY Diagnose P0456 or Hire a Professional?

That depends on your comfort level and what tools you have.

If you’re a DIYer:

- You can absolutely start diagnosis yourself. Most P0456 leaks are simple — often just a gas cap or small hose.

- Use a Foxwell scanner to confirm the code, clear it after tightening the cap, and see if it returns after a few drive cycles.

- You can also use an EVAP smoke machine if you like hands-on diagnosis.

If the code keeps coming back:

- It’s time to let a shop do a full EVAP pressure test or smoke test with specialized tools.

- A technician can test the purge valve, vent valve, and charcoal canister individually to pinpoint the failure.

💡 In short: Start with your own scan, check the simple stuff, and use tools like a Foxwell OBD2 scanner to monitor the system. If the problem persists, a professional smoke test will confirm the exact leak point.

What Are the Routine Repair Steps for the P0456 Code?

Simple and actionable steps: Start from the most common to the easiest parts to solve

Tighten or replace the fuel tank cap
Inspect and replace cracked/aged EVAP hoses
Check whether the interfaces and valve connections of the activated carbon tank are loose or blocked

Tool Usage: Use Foxwell Scanner to Monitor EVAP System

Check EVAP pressure readings and system readiness.
After repairs, clear codes and monitor for several drive cycles.

💡 Foxwell Scanner Tip: Tools like the Foxwell NT301 or NT710 allow you to monitor EVAP pressure, check purge/vent valve operation, and confirm that repairs are effective before you spend time or money on replacements.

Additional Notes

Most minor issues can be resolved at home without professional equipment.
Safety: Avoid contact with fuel and prevent damage to vacuum lines.

What Advanced Repairs Might Be Needed for the P0456 Code?

If routine steps do not solve the problem, more advanced diagnostics may be required:

1. Purge or Vent Valve Replacement

Valves can stick or fail, preventing proper EVAP system sealing.
Use your Foxwell scanner to activate the purge/vent valves and verify their operation.

2. Charcoal Canister Replacement

A damaged canister can allow vapors to escape. Inspect for cracks, fuel contamination, or loose connections.
Replacement requires removing hoses and mounting brackets safely; ensure correct reinstallation.

3. Hidden EVAP Line Leaks

Small punctures or pinholes in EVAP tubing are often invisible to the naked eye.
A smoke machine like the Foxwell SD210 can reveal even microscopic leaks.

4. System Pressure Test

Professionals or advanced DIYers can pressurize the EVAP system using a diagnostic tool to pinpoint leaks.
This step is necessary if visual inspection and smoke tests do not reveal the source.

💡 Pro Tips for DIYers

Cost considerations:

Foxwell S3000 Smoke Machine: ~$128 USD, a reliable option for detecting small leaks at home.

Replacement valves or hoses vary by vehicle: There is a common price: cap:~$20–$50; valve:~ $40–$150; EVAP hose(clamps/hoses) : $10–$30.
Always document disconnections and orientation when replacing valves or hoses to avoid installation errors.

Different Vehicles: P0456 Signs & Symptom-Specific Pain Points

Below are vehicle-specific P0456 signs and pain points sorted by make/model, summarize from real user experiences on online forums, helping DIYers quickly identify potential issues and avoid common diagnostic pitfalls.

1. BMW (2019 X5, 2016 X1, 430i, E36/E46/E39 M Series)

Key Symptoms / Pain Points:

Intermittent Check Engine Light (CEL) that may turn off temporarily after addressing minor issues like cleaning or lubricating the gas cap seal.
BMW 430i owners reported unusual turbo-like spooling sounds at full throttle and worsening rough idle/surging when P0456 appeared.
2016 X1 owners experienced persistent CEL even after checking the gas cap; the issue traced to a faulty fuel tank breather valve.

Common Misdiagnosis Risks:

NVLD (Leak Detection Valve) failures are often mistaken for a physical leak.
LDP (Leak Detection Pump) issues may exist without obvious fuel smell or visible damage.

User Tips:

Tighten, clean, or lubricate gas cap seals (silicone spray or garage lubricant). CEL often clears after driving ~1 hour.
Use a Foxwell scanner to verify EVAP system readiness after any repair.

2. Ford (2021 Explorer ST, 2020 Explorer ST)

Key Symptoms / Pain Points:

Persistent “permanent” code: Clearing the P0456 code may not remove it entirely if underlying issues persist.
Post-refueling drivability issues: Some owners reported longer engine start times immediately after filling up, traced to faulty purge valves.
Capless fuel filler quirks: Debris or stuck valves in the filler neck may trigger intermittent P0456.
Mod-related recurrence: Thermal exhaust or intercooler mods sometimes coincide with CEL reactivation (even without direct link).

User Feedback / Examples:

A 2021 Explorer ST owner had no issues detected on the first dealer visit; the second visit revealed a leaking fuel filler tube/hose near the gas tank, which was replaced along with seals to fix the code.
Quick “capless filler resets” (inserting/removing a funnel) may temporarily stop the code but don’t solve the root cause.

Common Diagnostic Mistakes:

Dealers sometimes report “No Fault Found” after leak tests, missing filler tube/hose leaks.
Technicians often overlook the capless filler neck’s internal valve as a source, focusing only on hoses or purge/vent valves.

3. Lincoln MKZ (2013 Model)

Key Symptoms / Pain Points:

CEL may never illuminate, but owners report brief stalling at idle after refueling.

User Feedback / Examples:

The issue traced to overfilling the gas tank, which flooded the EVAP charcoal canister and caused a small vapor leak that disrupted idle.

Common Diagnostic Mistakes:

Technicians often misattribute idle issues to spark plugs or fuel injectors instead of considering the EVAP system.
EVAP-specific tests revealed the true root cause.

Source: reddit and fordescape

How Do I Verify That the P0456 Code Is Fully Fixed After Repair?

Verification is essential to ensure the repair worked:

Clear the Trouble Code: Use your Foxwell scanner to reset the P0456 code.
Check EVAP System Readiness: Monitor the EVAP readiness monitor via your scanner. The system should indicate “ready” after several drive cycles.
Perform a Test Drive: Drive under normal conditions and observe whether the Check Engine Light returns.
Optional Smoke Test: If available, a smoke machine can confirm no new or remaining leaks exist.
Record the Fix: Document which parts were replaced and the final test results for future reference.

FAQs About the P0456 Trouble Code

Q1: How Does a Faulty Gas Cap Lead to the P0456 Code?

The gas cap is part of the EVAP system. A faulty cap—whether loose, with a cracked rubber seal, or a broken “click” mechanism—fails to seal the tank properly, allowing fuel vapors to escape. Since P0456 specifically flags very small leaks, a worn or loose gas cap is the most common cause (responsible for over 70% of cases).

Q2: How Much Does It Usually Cost to Repair the P0456 Code?

Simple fixes: Tightening/replacing the gas cap, $20–$50.
Moderate repairs: Replacing hoses or purge/vent valves, $40–$150 depending on model.
Advanced repairs: Smoke machine-assisted detection and replacing a charcoal canister or valves, Foxwell S3000 costs ~$128; parts vary by vehicle.

Q3: Does a Leak in the EVAP System (From P0456) Impact Fuel Economy?

Minimally, if at all. The EVAP system recycles fuel vapors back to the engine to be burned, but a tiny P0456 leak loses only trace amounts of vapor. Most drivers won’t notice a difference in MPG—any drop is typically less than 1 MPG, too small to detect without tracking fuel usage closely. The bigger concern is emissions compliance, not fuel efficiency.

Q4: What Tools or Diagnostic Scanners Are Recommended for P0456?

OBD-II Scanner: Foxwell NT301 / NT510 / NT710. Read P0456 codes, monitor EVAP pressure, check purge/vent valve operation.
Smoke Machine: Foxwell SD210. Detect hidden micro leaks in hoses or canister (advanced DIY or professional use).
Basic tools: Screwdrivers, pliers, replacement hoses/valves, fuel cap seals.

Q5: If the P0456 Code Disappears After Clearing It, Is the Problem Solved?

Not necessarily. Clearing the code resets the Check Engine Light. If the underlying leak persists, the code will likely return.
The code stays gone only after fixing the root cause (e.g., replacing the cap，valves, or the charcoal canister) and the EVAP system confirms no leaks. Use a Foxwell scanner to check “Readiness Monitors”—once the EVAP monitor shows “Ready” and no codes return, the problem is solved.

Q6: Can Diesel Vehicles Also Trigger the P0456 Trouble Code?

Yes, but less commonly than gasoline vehicles, possible in older diesel trucks (e.g., Ford Power Stroke, Dodge Cummins). Diesel vehicles have EVAP systems too, though they’re simpler (diesel fuel evaporates far less than gasoline, so vapor volume is lower).

EVAP features in diesels: They still use a charcoal canister, vent valve, and pressure sensor to trap diesel vapors, but the system runs leak tests less frequently.
Causes of P0456 in diesels: Typically the same as gas vehicles—loose/faulty fuel caps (though diesel caps are often heavier-duty), cracked EVAP hoses, or stuck vent valves.

How to Prevent the P0456 Code and Maintain the EVAP System?

Preventing P0456 is all about simple, regular maintenance that DIY car owners can perform at home:

Check and tighten the fuel cap regularly
Inspect EVAP hoses and connections
Keep valves and the charcoal canister clean
Avoid overfilling the fuel tank
Establish a routine inspection habit

💡 Pro Tip: If routine checks do not resolve or prevent the issue, more advanced diagnostics and repairs may be required (see section 5.2 for valve replacement, smoke testing, or hidden EVAP line checks).

What’s the Bottom Line: Summary and Recommendations for P0456?

1. P0456 is usually a minor leak / small EVAP system issue

It generally does not immediately affect drivability, but leaving it unaddressed long-term may impact emissions and fuel efficiency.

2. Start with basic checks before considering advanced repairs

Inspect the fuel cap, hoses, and valve connections.
Use a Foxwell scanner to monitor EVAP system status and verify repairs.

3. Advanced DIY or professional interventions

If basic checks don’t resolve the issue, consider replacing purge/vent valves, charcoal canister, or performing a smoke test to locate hidden leaks.
Tools like the Foxwell SD210 / S3000 smoke machine can help DIYers detect even tiny leaks.

4. Establish a regular maintenance habit

Helps prevent P0456 from recurring and extends the EVAP system’s lifespan.
Combine with Foxwell diagnostic tools to create a routine inspection checklist.

Reference: What Tools and Parts Do I Need for P0456 Diagnosis and Repair?

Type	Recommended Tool / Part	Purpose / DIY Tips
OBD2 Scanner	Foxwell NT301 / NT710 / NT510	Read P0456 codes, monitor EVAP pressure, check valve operation
Smoke Tester	Foxwell SD210	Detect hidden micro leaks (for advanced DIY or professional use)
EVAP Hoses & Connectors	OEM or compatible replacements	Replace aged, cracked, or loose hoses
Purge / Vent Valves	OEM or aftermarket parts	Replace malfunctioning or stuck valves
Fuel Cap Seal	OEM or compatible replacement	Regularly inspect/replace to prevent small leaks

P0456 – Evaporative Emissions System Small Leak Detected: Ultimate Guide

What Does Engine Code P0456 Mean?

What Is the Evaporative Emissions System (EVAP)?

Can I Safely Drive My Vehicle When the P0456 Code Is Triggered?

What Are the Common and Subtle Symptoms of the P0456 Code?

What Causes the P0456 Trouble Code?

Typical Causes of the P0456 Code?

What Uncommon but Important Causes Should I Watch for With P0456?

How Do I Read the P0456 Code From My Vehicle?

What Methods Can Be Used to Detect Leaks in the EVAP System for P0456?

① Start with the Gas Cap

② Do a Visual Inspection

③ Use Live Data with Your Foxwell Scanner

④ Try a Smoke Test (Most Accurate)

Should I DIY Diagnose P0456 or Hire a Professional?

What Are the Routine Repair Steps for the P0456 Code?

Simple and actionable steps: Start from the most common to the easiest parts to solve

Tool Usage: Use Foxwell Scanner to Monitor EVAP System

Additional Notes

What Advanced Repairs Might Be Needed for the P0456 Code?

1. Purge or Vent Valve Replacement

2. Charcoal Canister Replacement

3. Hidden EVAP Line Leaks

4. System Pressure Test

💡 Pro Tips for DIYers

Different Vehicles: P0456 Signs & Symptom-Specific Pain Points

1. BMW (2019 X5, 2016 X1, 430i, E36/E46/E39 M Series)

2. Ford (2021 Explorer ST, 2020 Explorer ST)

3. Lincoln MKZ (2013 Model)

How Do I Verify That the P0456 Code Is Fully Fixed After Repair?

FAQs About the P0456 Trouble Code

Q1: How Does a Faulty Gas Cap Lead to the P0456 Code?

Q2: How Much Does It Usually Cost to Repair the P0456 Code?

Q3: Does a Leak in the EVAP System (From P0456) Impact Fuel Economy?

Q4: What Tools or Diagnostic Scanners Are Recommended for P0456?

Q5: If the P0456 Code Disappears After Clearing It, Is the Problem Solved?

Q6: Can Diesel Vehicles Also Trigger the P0456 Trouble Code?

How to Prevent the P0456 Code and Maintain the EVAP System?

What’s the Bottom Line: Summary and Recommendations for P0456?

Reference: What Tools and Parts Do I Need for P0456 Diagnosis and Repair?

Recommended Similar Articles：

Reading next
