The Solution to the OBD2 Scanner Not Connecting to the ECU

Failing to connect your OBD2 scanner to an ECU (Engine Control Unit) can be extremely irritating, particularly when trying to diagnose check engine lights or other vehicle issues. In this blog post, we'll look at the reasons behind these connection problems as well as solutions that may help get it up and running again.

Why Your OBD2 Scanner Isn't Connecting

Gaining an understanding of why your OBD2 scanner isn't connecting to the ECU is critical for effective troubleshooting. OBD2, or "On-Board Diagnostics", was designed to monitor vehicle performance and provide diagnostic information via its scanner port - typically located underneath your dashboard - however, this connection may fail for various reasons:

• Power Supply Issues: If the battery in your car is low or the OBD2 port does not receive power, the scanner cannot establish a connection.
• Faulty OBD2 Port: Physical damage or debris blocking the OBD2 port could thwart attempts at connecting successfully.
• Scanner Compatibility: Not all OBD2 scanners are designed for compatibility with all vehicles; compatibility issues could lead to connection failures.
• Blown Fuse: When it comes to OBD2, any blown fuse could shut off power to its port and potentially render it nonfunctional.
• Connection Protocols: Vehicles utilize various communication protocols, and using the incorrect one could impede connectivity issues.
• Software Issues: Outdated or corrupted scanner software could also lead to connectivity problems.

Common Causes of Connection Issues

Power Supply Issues

Guarantee that the battery of your vehicle is fully charged and in good condition, using a multimeter to check its OBD2 port power - it should read approximately 12 volts.

Faulty OBD2 Port

Additionally, inspect its OBD2 port for visible damage or debris accumulation that might indicate malfunction.

Make sure the pins in your port are undamaged or undamaged by corrosion.

Scanner Compatibility

Check that your OBD2 scanner is compatible with your vehicle make and model; some cars may require specific scanners or additional adapters.

Blown Fuse

Replace any blown OBD2 system-related fuses immediately and with ones of appropriate amperage, and ensure your scanner is set to the proper communication protocol (CAN, ISO 9141 or KWP2000).

Referring to your vehicle manual can help identify the appropriate protocol, while software issues needing attention can often be resolved simply by restarting or resetting the scanner.

Step-by-Step Troubleshooting Guide

For successful OBD2 scanner connection problems, an organized approach is key. Utilizing a reliable auto car scanner like the Foxwell NT809 can make this task simpler; here's a step-by-step guide on troubleshooting using an OBD2 scanner:

Checking Power Supply

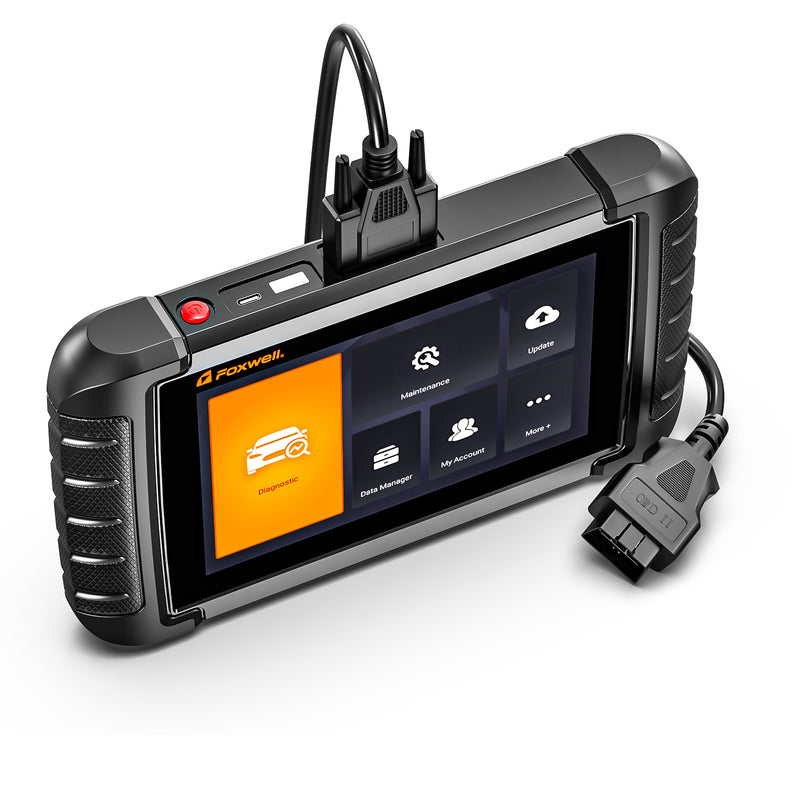

Start by turning on the accessory position of your ignition. Utilizing a multimeter and the Foxwell NT809's voltage check feature to test for power coming through to the OBD2 port. With all testing complete, inspect the OBD2 Port before performing further steps.

Inspect the OBD2 Port

Visually inspect the port for physical damage or obstructions before gently spraying with compressed air to clear away dust or debris. The Foxwell NT809's sturdy connection can easily accommodate worn ports more effectively than other models.

Verify Scanner Compatibility

Verify the compatibility of your scanner with your vehicle by visiting its manufacturer's website or searching compatibility lists; Foxwell NT809 supports an impressive variety of cars and minimizes compatibility issues.

Check Fuses

Fuses Locate the fuse box within your vehicle by consulting its owner's manual - they should contain an illustrated diagram showing where it should be found.

Set the Correct Protocol

Establish the Fuse Box Once identified and checked, check that its fuse is functioning as intended before replacing it as necessary with an NT809 to detect electrical issues.

Update Scanner Software

Please consult your vehicle manual to set up the necessary communication protocol.

Adjust the settings on your OBD2 scanner to match the vehicle's protocol; Foxwell NT809 scanners automatically detect this step for ease. Update Scanner Software

Connect your scanner to a computer and check for software updates regularly.

Follow the manufacturer's instructions to update your scanner's firmware; Foxwell NT809 supports effortless upgrades via Wi-Fi.

Reset Your Scanner

Sometimes, a simple reset can solve an issue quickly and effectively. Turn off and disconnect the scanner before reconnecting after some time has passed - the NT809's user-friendly interface makes this step effortless.

Common OBD2 Connection Scenarios (Quick Diagnosis)

If your OBD2 scanner powers on but won’t connect to the ECU

What it usually means

• OBD2 port has power, but no data communication
• Often related to protocol mismatch, ECU sleep mode, or CAN bus issues.

What to try

• Turn ignition to ON (engine off) and retry
• Manually select protocol (if supported)
• Check related fuses (not just labeled “OBD”)
• Try a professional car diagnostic tool

---

If your scanner connects but reads no codes

What it usually means

• Communication is established, but there may be no active fault codes, or the scanner may not support manufacturer-specific modules.

What to try

• Perform a full system scan (not engine-only)
• Check pending and history codes
• Verify scanner supports manufacturer-specific codes

---

If your scanner works on another car but not yours

What it usually means

• vehicle compatibility, model year, or ECU communication faults are likely causes.

What to try

• Confirm vehicle OBD2 compliance by year/market
• Check for known brand-specific issues
• Inspect wiring and ground connections

---

If your scanner connects to ELM327 but not to the vehicle

What it usually means

• App ↔ ELM327 connection is fine, but ELM327 ↔ ECU communication is failing
• The Bluetooth adapter is paired, but ECU communication is failing.

What to try

• Change protocol settings in the app
• Test with a wired scanner
• Use a higher-quality or brand-certified scanner

Important: Power, Communication, and Code Reading Are Not the Same

An OBD2 scanner can power on without communicating with the ECU, and successful communication does not always mean fault codes will be available.

• Power – the scanner receives voltage from the OBD2 port
• Communication – the scanner successfully talks to the ECU via the correct protocol
• Code Reading – fault codes actually exist and are accessible to the scanner

Understanding this distinction helps avoid misdiagnosis and unnecessary scanner replacement.

User Case: ELM327 OBD2 Adapter Not Connecting to 2005 Toyota Corolla ECU

A hobby mechanic recently shared their experience with an ELM327 OBD2 adapter on a 2005 Toyota Corolla (ZZE122). Despite reseating the device and verifying that all wires appeared fine, the scanner could not establish communication with the ECU. Community feedback highlighted several common issues that could cause this scenario: a blown diagnostic port fuse, the ignition not being in the "ON" position, software or compatibility issues with the ELM327 device, or vehicle-specific factors such as ECU sleep mode, shared fuses, or aftermarket electronics interfering with communication.

This real-world example emphasizes the importance of systematically checking the OBD2 port, fuses, ignition state, and scanner compatibility before assuming the scanner itself is faulty.

Additional Tips for Troubleshooting OBD2 Scanner Connection Issues

When troubleshooting OBD2 scanner connection issues, extra tips and best practices can significantly increase your chances of success. Here are a few expanded recommendations to assist with managing these problems more successfully:

Double-Check Connections

Always double-check that the OBD2 connector is securely and correctly connected to your vehicle's OBD2 port; loose connections may result in intermittent or no communication.

Check the Wiringharness

Inspect the wiring harness leading to your OBD2 port for any signs of damage, such as frayed wires or loose connections that could interfere with communication between the scanner and ECU. Any sign of damaged wiring could prevent proper communication from taking place between the ECU and the scanner.

An electrical contact cleaner should be used to clean the OBD2 port carefully, ensuring it remains clear for reliable connections in the future. Over time, dirt and oxidation may accumulate on its pins, disrupting their functionality.

Test With Another Car

To eliminate issues with the scanner itself, test connecting it to another vehicle. If it works on another car, your OBD2 system could likely be responsible.

Utilize a Backup Scanner

Using an additional OBD2 scanner to confirm whether the problem lies within either the scanner itself or with your vehicle can help more precisely pinpoint where the issue lies.

Check for Hidden Fuses

Some vehicles contain hidden fuses to protect their OBD2 port. Consult the service manual of your car or consult with a professional mechanic to locate and inspect these fuses.

Look For Software Updates

Regularly visit your scanner manufacturer's website for software updates to fix bugs, add features and improve compatibility across vehicle models. These upgrades may contain bug fixes, feature enhancements, or compatibility upgrades that could increase functionality or compatibility.

Join automotive forums and online communities dedicated to car diagnostics. This will allow you to connect with others experiencing similar issues who have solutions shared among themselves.

Vehicle-Specific Procedures

Some vehicles may require special steps in order to communicate with an OBD2 scanner, such as turning the ignition key to a specific position or performing several steps. Please refer to your service manual for any instructions that might apply and use a professional diagnostic tool for best results.

If basic OBD2 scanners fail, professional-grade diagnostic tools offer more comprehensive capabilities that enable them to bypass issues that simpler scanners cannot.

Battery Health

Make sure your vehicle's battery is in top shape to avoid voltage drops that could interfere with OBD2 scanner communication with ECU. A weak or failing battery could impede how OBD2 communicates with ECU.

OBD2 ports or ECUs may require professional calibration or reprogramming; this step typically requires specialist equipment and expertise.

By following these additional tips, you can broaden your approach and increase the odds of successfully diagnosing and fixing OBD2 scanner connection issues. Remember that methodical checks are key in pinpointing and rectifying issues.

When the Problem Is the Vehicle, Not the Scanner

Sometimes the scanner is doing everything right — the vehicle isn’t.

ECU sleep mode

• Many modern vehicles shut down ECUs to save power
• Requires ignition ON or specific wake-up sequence

Blown shared fuse

• OBD2 port often shares fuses with:
  • Radio
  • Interior lights
  • Cigarette lighter
• Fuse may look unrelated but still affects communication

CAN bus fault

• Damaged wiring or poor grounding can block data flow
• Often requires advanced diagnostics to confirm

Aftermarket alarm / immobilizer

• Poorly installed systems may interrupt CAN lines
• Common after stereo or security system installations

When to Stop Troubleshooting and Seek Professional Help

• OBD2 port has power, but the scanner (proven to work on other vehicles) still fails to connect
• Communication failures persist after checking fuses and basic wiring
• You suspect deep-rooted issues (e.g., faulty ECU, CAN bus wiring problems, aftermarket immobilizer interference)
• Multiple scanners all fail to establish connection

• Perform module-level communication tests
• Access manufacturer-specific data
• Identify wiring or ECU faults safely

Related reading: How Do You Reset an Immobilizer?

Conclusion

Solving OBD2 scanner connection issues is often a multi-step process, but with patience and the appropriate approach, most problems can be resolved.

By making sure connections are solid, checking for physical damage, updating software as necessary, using both basic and advanced diagnostic tools, as well as consulting professional mechanics for assistance, most communication issues between your OBD2 scanner and vehicle ECU will likely be resolved without incident.

If these efforts don't bring success, however, seeking help from professional mechanics would always be a wise decision.

Implementing these strategies can ensure your vehicle diagnostics are reliable and accurate, helping maintain vehicle performance while promptly addressing issues.
